Balustrade Systems

Our Eazy-Rail systems enable the most stylish of hand-railing and balustrades to be constructed quickly and simply by the contractor. All you have to do is cut, glue or screw to create professional results every time.

DD Glass Balustrade Systems

Our Eazy-Rail systems enable the most stylish of hand-railing and balustrades to be constructed quickly and simply by the contractor. All you have to do is cut, glue or screw to create professional results every time.

A choice of infills are available including standard and bespoke glass panels. Other Eazy Rail infill solutions include glass clamps, perforated metal, expanded metal, wire, wire mesh and wire rope netting all available from stock, and our aluminium glass balustrade solutions include a number of time and cost-saving options available as either base fix or side fix. Specifiers can be assured that component design and range flexibility mean installation by a competent installer is a straightforward process.

Balustrade Systems

Our balustrade systems are stylish, durable and cost-effective stainless steel handrailing component systems designed with ease of installation in mind.

stainless steel Square post system
Square Post System

Our Eazy-Rail Lucentro pre-assembled stainless steel square post system has a geometric design ideal for gardens, patios, decking and balconies as well as internal stairs and walkways. 10mm glass would accompany this system.

Specifications

Post width – 40mm x 40 mm posts

Post heigh – 978mm or 1100mm

Finish – satin or mirror finish

1100mm handrail height when installed with our components on flat surfaces

Posts with glass clamps accept 10mm glass

316 stainless steel

Pre assembled posts

Bolt or screw base fixing

Tested to BS 3180 with a welded base fitting or fascia mount for side fix

Base fitting with cover plate & rubber “O” ring to secure cover plate

stainless steel round post system
Round Post System

Our Eazy-Rail Lucentro round stainless steel post system is the most cost effective balustrade system. Perfect for areas where you wouldn’t want to compromise any views you may have. 10mm toughed glass would accompany this post system.





Specifications

Available in 42.4mm or 48.3mm posts

Available in satin or mirror finish

1100mm handrail height when installed with our components on flat surfaces

Posts with glass clamps accept 10mm glass

A 5 degree variable fixing bolt allows flexibility of alignment when fixing glass

316 stainless steel

Pre assembled posts

Bolt or screw base fixing

Tested to BS 3180 with a welded base fitting or fascia mount for side fix

Base fitting with cover plate & rubber “O” ring to secure cover plate.

stainless steel side fixing post system
Side Fixing Post System

Our Eazy-Rail Lucentro pre-assembled stainless steel side fixing post system is perfect for those areas where base fixing isn’t possible or where walkways maybe obstructed by a base fixing system while still giving you that pristine finish.

Specifications

Available in 42.4mm or 48.3mm posts

Available in satin or mirror finish

1100mm handrail height when installed with our components on flat surfaces

Posts with glass clamps accept 10mm glass

A 5 degree variable fixing bolt allows flexibility of alignment when fixing glass

316 stainless steel

Pre assembled posts

Resin or concrete fixings

Tested to BS 3180 fascia mount for side fixing

Pre-assembled Glass Balustrade System
Frameless Glass System

Our Eazy-Rail frameless glass Balustrade system is a frameless glass balustrade system for installations up to 0.74kN. This cost-effective system requires no cladding and is quick to install. It is available as base or side fix options and in satin anodised finish to accomodate 12 – 21.5mm glass.

Specifications

PRODUCT FEATURES

Satin anodised finish

Stainless cladding not required

Pre-drilled channel fixing holes

Height to glass when packer fitted is 13mm

Packer height 2mm

Quick & easy to install

Base fixing and side fixing

Eazy-Rail Curve – Anodised Aluminium modular systems
Anodised Systems

Eazy-Rail curve side railings is an innovative railing system designed to be fully modular. The pre-assembled aluminium 50mm square posts are ready to install. The system can be fully fitted using basic equipment and comes fully engineered to meet the requirements of most applications.

Specifications

Fully assembled 50 x 50mm square posts

Aluminium & satin anodised finish

To suit 10mm glass

Suitable for indoor & outdoor installations

Quick, safe & easy installation

Gap between handrail and glass is 80mm

Bottom edge of glass to floor is 90mm

Tested to 1.2m posts centres

Posts available in bolt-down and side-fix

Specification

Post width: 54mm

Post height: 1137mm handrail or 1106 no handrail

Base size: 121mm

Material – Anodised aluminium

Ocean Side Systems
Ocean Side Systems

Our new cost effective range of anodised aluminium handrail fittings and tube, offers the installer a simple, modular system that simply glues and screws together. The system consists of a top rail made from Ø 50mm tube in three exquisite finishes, with a Ø 42mm post that is designed to provide maximum strength.

Specifications

Post length: 1005mm

Post diameter: 42.4mm

Gives overall height of 1100mm when using a base plate, handrail saddle and Ø50mm tube

Material – Anodised aluminium

 Eazy-Rail spigot systems

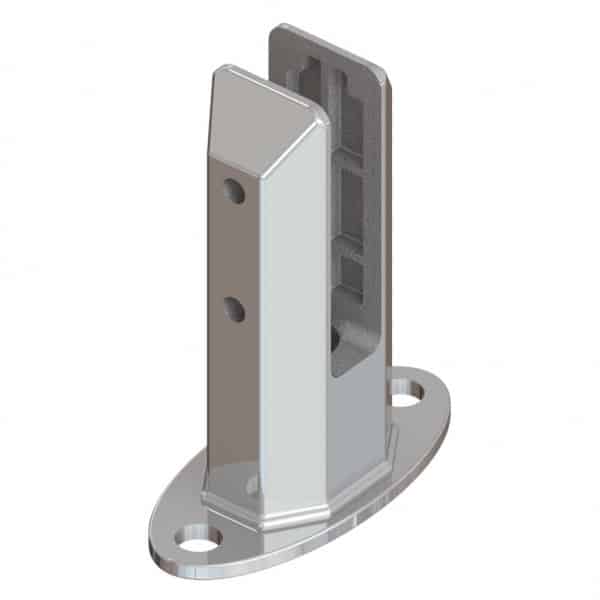

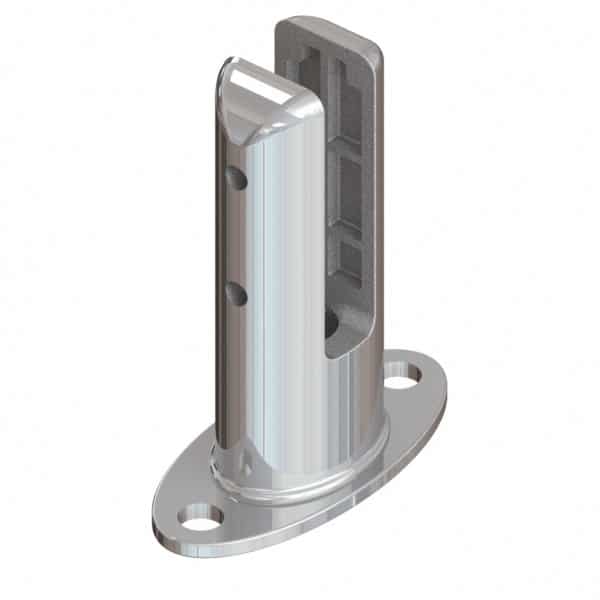

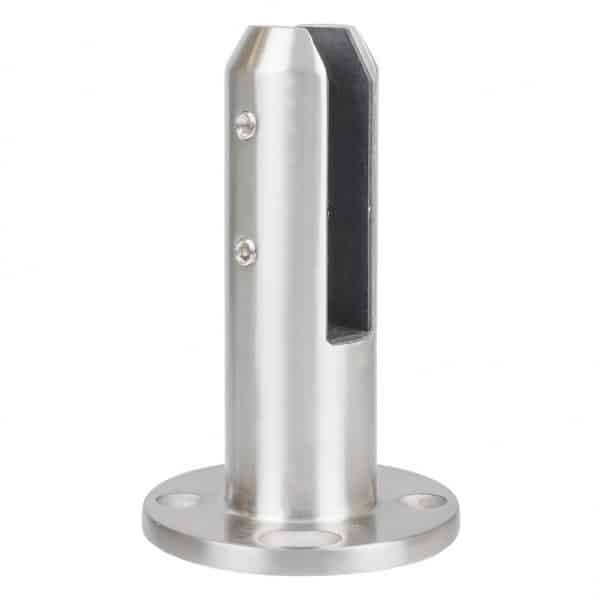

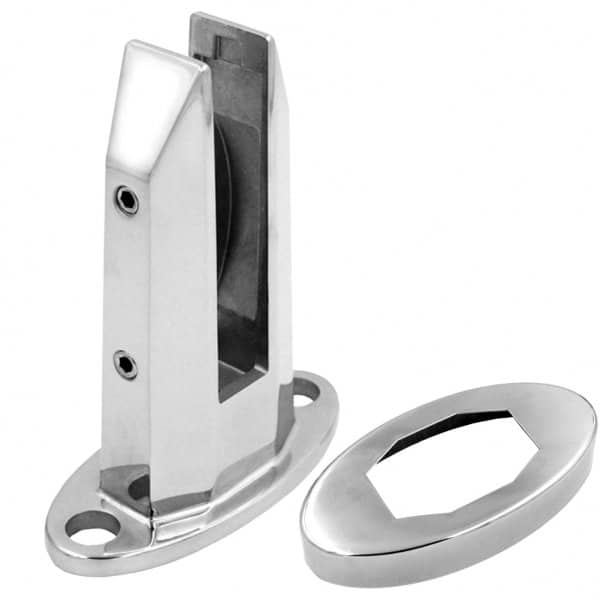

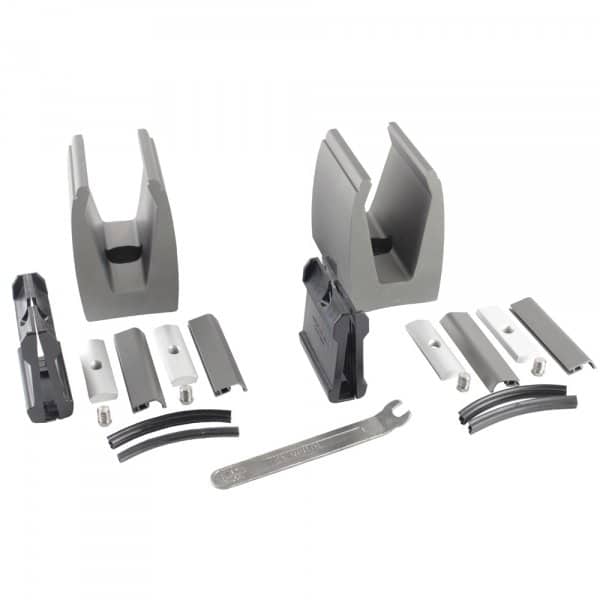

Spigot System

Our Eazy-Rail spigot systems come in 6 different types to meet your required needs.

We supply a range of easy to fit glass spigots in a variety of materials including our Duplex 2205 budget option.

Gallery



Glass spigots are an easy and effective way of creating impressive designs for residential, commercial or public buildings.

Our spigot systems suit between 10mm – 21.5 mm.

button stand off-adapters
Button Stand Off-adapters

Our Eazy-Rail stainless steel button glass stand off-adapters adaptors are a discrete and simple way of holding glass panels in place whilst offering a contemporary touch of elegance to glass balustrades, Juliet balconies, railings or staircase applications.

Specifications

Available in zinc 304 and 316 stainless steel

Available in satin or mirror finish

Suitable for 6 – 25.52mm glass (toughened glass link)

Suitable for indoor or outdoor use

Contemporary aluminium powder coated modular systems
Coated Modular Systems

Eazy-Rail Contemporary railings offer style and sophistication without compromising the views.  Choose from 3 polyester powder coated channel colours: black gloss RAL 9005, black sand and white gloss RAL 9016. Also available in a mill/raw finish.





Specifications

This system offers 2 glass styles and can be fitted to aluminium or wooden posts and brick pillars.

50mm Eazy-Rail 1155mm bolt-down posts to achieve a 1100mm high handrail on flat surfaces and with a 2.3mm nominal thickness. Posts are supplied with base cover plate and protective cap.

Available in 3 colours

Material and finish: pre-galvanised powder

coated aluminium

Fixing – Base or side fixing

Post width: 50mm or 75mm

Post height: 1155mm

Base size: 127mm

2.28mm nominal thickness

Colour: black sand

Supplied with protective caps

Includes base cover plates

8mm toughened glass

Pre-assembled wire rope systems
Wire Rope System

To complement our Eazy-Rail range of products, we offer a 2 wire rope systems as a choice of infill.  The stainless steel 3mm or 6mm  systems are a simple and cost effective alternative to our cross bar.  Wire rope can be fixed to most surfaces, perfect for external applications in residential and commercial environments.

Specifications

Post size – 48.3mm

Post height – 1100.30mm or 972mm

Base plate – 120mm

Wire size – 3mm or 6mm

1100mm handrail height when installed with our components on flat surfaces

Materials – 316 stainless steel

Suitable application – Outdoor and indoor use

Available posts

7 Hole Wire Rope End/Mid post – 48.3mm – C/W Welded base & 7 M6 Eyebolts

14 Hole Wire Rope Mid Post – 48.3mm – As C/W welded base & 14 x M6 Eyebolts

14 Hole Wire Rope Mid Post – 48.3mm – As C/W welded base

14 Hole Wire Rope Corner Post – 48.3mm – C/W welded Base & 14 x M6 Eyebolts

Tested to BS 3180 with a welded base fitting
